Here are some Examples…

Reverse Engineering Bakery Equipment Parts

When critical parts for bakery machinery are no longer available from the original manufacturer, reverse engineering allows businesses to reproduce these components. This involves creating precise CAD (Computer-Aided Design) models based on the original part and using advanced manufacturing techniques to produce new ones.

Key Steps:

Inspection and Measurement:

1.Physically measure the existing part (if available) using tools like calipers, micrometers, or 3D scanners.

2.Example: A worn-out roller from a dough sheeter can be scanned to capture its dimensions and surface contours.

CAD Modeling:

1.Translate the measurements into detailed CAD drawings that specify the part’s geometry, materials, and tolerances.

2.Example: A broken gear from an industrial bread slicer can be converted into a CAD model to ensure precision.

Material Selection and Manufacturing:

1.Choose suitable materials, such as exotic metals or specialized plastics, to meet the bakery equipment's operational demands.

2.Example: Replace a high-temperature oven conveyor component with a new one made from heat-resistant stainless steel.

Production and Testing:

1.Manufacture the part using processes like CNC machining, injection molding, or 3D printing.

2.Test the new part to ensure it integrates seamlessly into the machinery.

Examples of Bakery Equipment Reverse Engineering:

Obsolete Bearings for Mixers:

1.A bakery mixer’s bearing is no longer produced. Reverse engineering creates a CAD model of the worn bearing, and a replacement is manufactured using modern materials with better durability.

Custom Conveyor Chains:

1.Conveyor systems for proofing chambers often use unique chains that wear out over time. Reverse engineering replaces these with corrosion-resistant alternatives, enhancing the system's longevity.

Exotic Metal Blades for Dough Cutters:

1.Blades that were originally made of exotic steel alloys for cutting sticky dough are replicated using reverse engineering. The CAD process ensures precise replication and compatibility.

Plastic Components for Packaging Machines:

1.Outdated plastic guides or cogs in packaging machines can be reverse-engineered and manufactured from food-grade polymers, ensuring safety and compliance with regulations.

Heating Elements for Ovens:

1.When heating elements fail in older ovens, reverse engineering allows for the creation of compatible replacements using advanced heat-resistant alloys.

Why Reverse Engineering is Critical in Bakery Operations

Minimizes Downtime:Replacing hard-to-find parts keeps production running smoothly.
Cost-Effective:Avoids the need to replace entire machines due to minor part failures.
Customization Opportunities:Parts can be improved upon, providing better performance than the originals.
Sustainability:Extends the life of equipment, reducing waste and promoting eco-friendly practices

Read More Read Less

Here is a list of different machining processes used to manufacture components from specialty plastics like PEEK and PTFE, and metals like brass, stainless steel, and steel, along with relevant examples and industries:

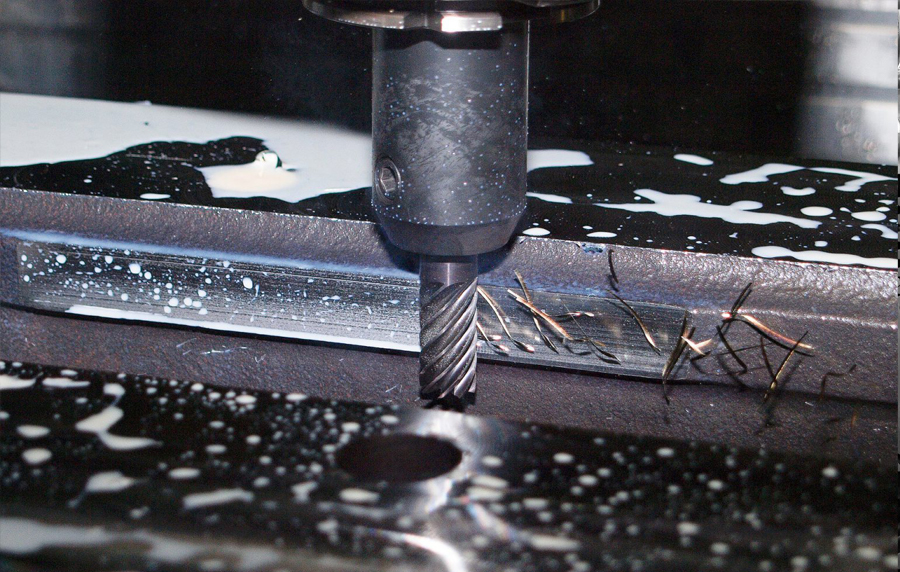

CNC Milling

Process: CNC (Computer Numerical Control) milling uses rotary cutters to remove material from a workpiece, allowing for precise cutting and shaping of complex parts.

Materials:PEEK, PTFE, Brass, Stainless Steel, Steel
Examples:
PEEK:Custom seals, bearings, and wear parts.
PTFE:Gaskets, washers, and insulators.
Brass:Electrical connectors, valves, and precision components.
Stainless Steel:Surgical instruments, machine parts, and automotive components.
Steel:Engine blocks, structural components, and tools.
Industries:Aerospace, Automotive, Medical, Electronics, Manufacturing

Turning (Lathe Machining)

Process: Turning uses a rotating workpiece and stationary cutting tool to remove material, typically to create cylindrical shapes, threads, or smooth surfaces.

Materials:PEEK, PTFE, Brass, Stainless Steel, Steel
Examples:
PEEK:Rods and shafts for medical or food processing applications.
PTFE:Bearings and bushings for chemical industries.
Brass:Precision components for electronics and plumbing.
Stainless Steel:Shafts, bushings, and components in marine environments.
Steel:Axles, rods, and shafts for automotive or heavy machinery.
Industries:Medical, Automotive, Electronics, Manufacturing, Aerospace

Grinding

Process: Grinding involves using an abrasive wheel to smooth or finish surfaces, typically used for high-precision applications and creating tight tolerances.

Materials:PEEK, PTFE, Brass, Stainless Steel, Steel
Examples:
PEEK:Fine-tuning the dimensions of high-performance medical parts.
PTFE:Achieving smooth finishes for non-stick coatings or seals.
Brass:Polished electrical connectors or mechanical parts.
Stainless Steel:Finishing stainless steel components for food-grade environments or medical instruments.
Steel:Surface finishing of tool steels or bearing surfaces.
Industries:Medical, Aerospace, Electronics, Automotive, Manufacturing

Electrical Discharge Machining (EDM)

Process: EDM uses electrical discharges (sparks) to erode material from the workpiece, ideal for hard metals or complex, delicate parts.

Materials:PEEK, PTFE, Brass, Stainless Steel, Steel
Examples:
PEEK:Creating intricate, complex geometries for aerospace or medical devices.
PTFE:Precision-cut parts for high-tolerance industrial seals.
Brass:Mold components or small electrical parts.
Stainless Steel:Complex, intricate shapes for medical implants or tools.
Steel:Producing precision molds, tooling, and parts for automotive or heavy machinery.
Industries:Aerospace, Medical, Tooling, Manufacturing, Automotive

Laser Cutting

Process: Laser cutting uses a focused laser beam to melt or vaporize material to create precise cuts in various shapes.

Materials:PEEK, PTFE, Brass, Stainless Steel, Steel
Examples:
PEEK:Cutting seals, gaskets, or custom components for aerospace or electronics.
PTFE:Cutting gaskets or seals for the chemical or food industries.
Brass:Cutting intricate patterns for electrical connectors and plumbing parts.
Stainless Steel:Cutting stainless steel sheets or components for medical devices or food processing.
Steel:Cutting structural components for construction and automotive parts.
Industries:Electronics, Automotive, Aerospace, Medical, Manufacturing

Water Jet Cutting

Process: Water jet cutting uses high-pressure water mixed with abrasive materials to cut through thick materials without generating heat.

Materials:PEEK, PTFE, Brass, Stainless Steel, Steel
Examples:
PEEK:Precision cutting for medical or aerospace components.
PTFE:Cutting seals or gaskets for the chemical industry.
Brass:Cutting parts for electrical systems and hardware.
Stainless Steel:Cutting food-grade stainless steel components.
Steel:Cutting steel plates for structural or automotive applications.
Industries:Aerospace, Medical, Electronics, Automotive, Manufacturing

Drilling

Process: Drilling involves creating round holes in a workpiece using a rotating drill bit.

Materials:PEEK, PTFE, Brass, Stainless Steel, Steel
Examples:
PEEK:Drilled holes for medical implants or aerospace parts.
PTFE:Holes for custom gaskets or seals in chemical industries.
Brass:Drilling precision holes for electrical or mechanical components.
Stainless Steel:Drilling holes for medical instruments, valves, or food processing parts.
Steel:Creating holes in automotive components or heavy-duty machinery parts.
Industries:Medical, Aerospace, Automotive, Electronics, Manufacturing

Milling

Process: Milling involves using rotary cutters to remove material from a workpiece, creating flat surfaces or complex shapes.

Materials:PEEK, PTFE, Brass, Stainless Steel, Steel
Examples:
PEEK:Milling precision parts for aerospace or medical applications.
PTFE:Milling components for gaskets or seals used in chemical processing.
Brass:Creating complex electrical connectors or fittings.
Stainless Steel:Milling machine parts, surgical tools, or food processing equipment.
Steel:Milling structural components, automotive parts, or machinery.
Industries:Aerospace, Automotive, Medical, Electronics, Manufacturing

Polishing

Process: Polishing is a finishing process that smooths the surface of a part to achieve a shiny, smooth finish, typically using abrasive compounds.

Materials:PEEK, PTFE, Brass, Stainless Steel, Steel
Examples:
PEEK:Polishing medical components for smooth finishes in implants or surgical tools.
PTFE:Polishing for non-stick surfaces in food-grade parts or seals.
Brass:Polishing for decorative items or electrical connectors.
Stainless Steel:Polishing for medical devices, food equipment, or automotive parts.
Steel:Polishing parts for high-end machinery or tools.
Industries:Medical, Aerospace, Electronics, Automotive, Manufacturing

Each of these machining processes allows for the creation of precision components from specialty plastics like PEEK and PTFE, and metals like brass, stainless steel, and steel, catering to various industries such as aerospace, automotive, medical, electronics, and manufacturing. The choice of machining process depends on the material properties, complexity of the part, and the required tolerances.

Read More Read Less

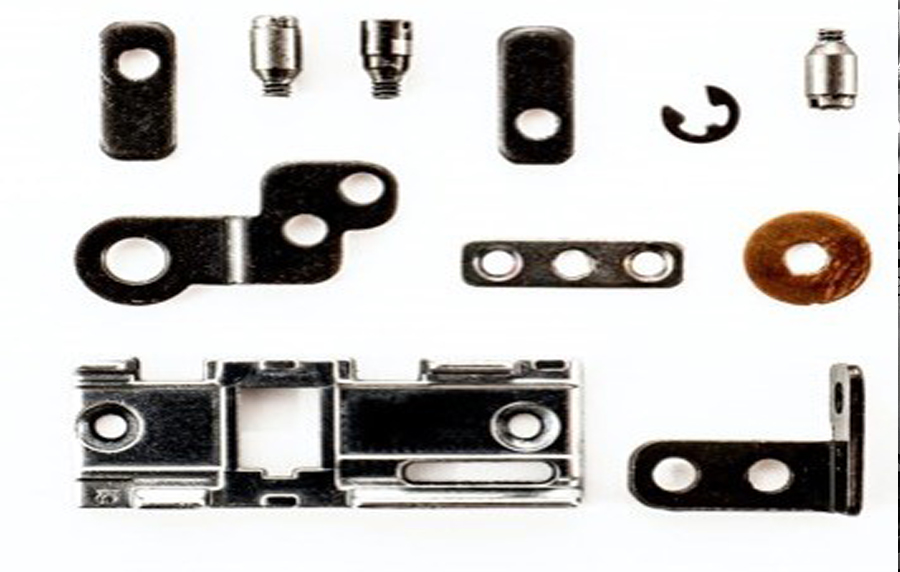

Examples of Sheet Metal Fabrication in Various Industries

Laser-Cut Trays

Bakery Equipment:
Custom baking trays with perforations for heat distribution.
Electronics:
Precision trays for mounting printed circuit boards (PCBs) or organizing electronic components.
Example: Laser-cut aluminum trays for server racks in data centers.

Read More Read Less

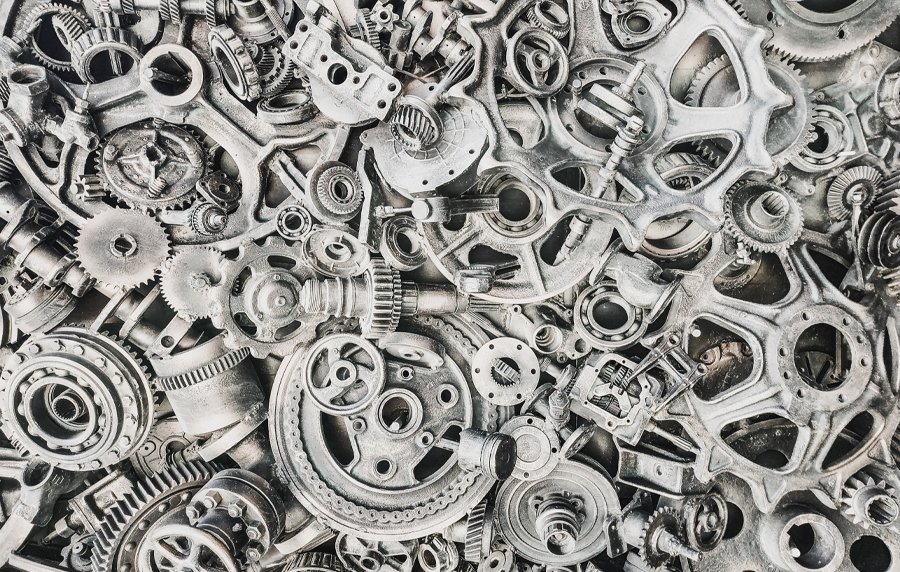

Here are some examples of casting processes used to produce smaller, lighter, and non-critical components across various industries:

Sand Casting

➡️ Components & Industries:

Automotive:Small engine parts, decorative trim, and brackets.
Consumer Goods:Small household items like lamp bases, door handles, and decorative castings.

Read More Read Less

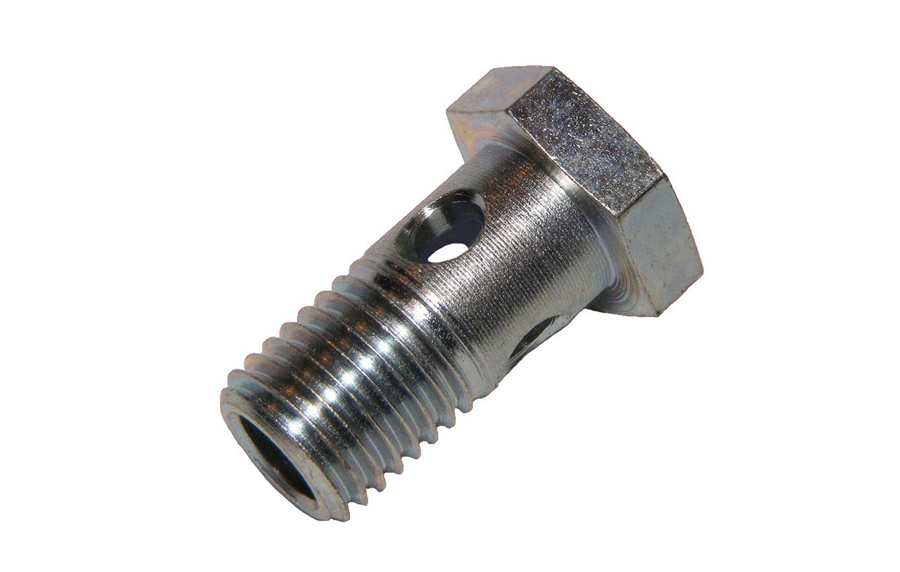

Special fasteners are uniquely designed components created to meet specific requirements beyond standard fasteners. They serve specialized functions in industries like aerospace, automotive, and construction where durability, unique shapes, or enhanced corrosion resistance are essential. Common types include self-tapping screws, captive fasteners, and custom bolts, each tailored to particular applications. Special fasteners provide increased strength, reliability, and adaptability, often crafted from materials like stainless steel, titanium, or alloys for enhanced performance.

Read More Read Less

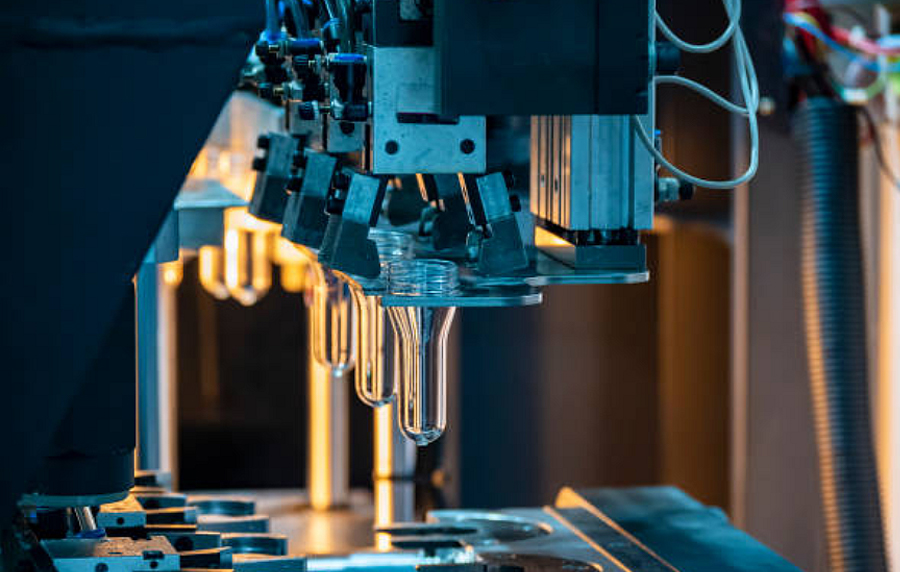

Injection Molding Applications: Plastic Components Across Industries

Injection molding is a versatile manufacturing process used to produce a wide range of plastic components with precision and efficiency. This process is essential for creating durable, lightweight, and cost-effective parts for various industries. Below is an expanded explanation with specific examples.

Examples of Injection Molding Applications

Household Appliances

Dishwashers:
Plastic components such as racks, spray arms, and door seals are manufactured using injection molding to ensure durability, water resistance, and precise fit.
Example:Injection-molded cutlery baskets designed for easy organization and optimal water flow during cleaning.

Food Processing and Commercial Equipment

Solenoid Valve Components:
Plastic housings and seals for solenoid valves in dishwashers and washing machines. These parts need to withstand high pressure and temperature variations.
Example:Injection-molded solenoid valve casings made from reinforced nylon to handle the demands of water flow control in appliances.
Proofer Baskets (Overmolding):
Overmolding involves combining two materials (e.g., a rigid plastic core with a softer exterior) to enhance grip, durability, or functionality.
Example:Overmolded proofer baskets with rigid polypropylene cores and flexible silicone grips for safe handling and stackability.

Automotive Industry

Engine Parts:

Heat-resistant plastic housings for solenoid valves, fuel system components, and cooling system connectors.
Example:Injection-molded valve covers with precision-engineered ports for oil flow.

Medical and Healthcare

Diagnostic Equipment:
Housings for devices monitors or imaging equipment are injection-molded for precision and sterility.
Example:Injection-molded casing for a handheld ultrasound device with ergonomic design and antimicrobial properties.

Industrial Applications

Machinery Parts:

Covers and housings for machinery components are molded for durability and precise fits.
Example:Injection-molded safety guards for factory conveyor belts.

Material Considerations

High-Durability Plastics:
Nylon, Polycarbonate, and ABS:Used for solenoid valve housings and washing machine components for their strength and heat resistance.
Food-Grade Plastics:
Polypropylene and Polyethylene:Commonly used in proofer baskets and dishwasher components due to their non-toxicity and ease of cleaning.
Overmolding Materials:
TPE (Thermoplastic Elastomers) and Silicone:Used for soft-touch grips in proofer baskets and ergonomic handles.

Advantages of Injection Molding

1.High Efficiency:

1.Suitable for mass production with consistent quality and tight tolerances.

2.Versatility:

1.Capable of creating complex shapes, overmolded parts, and multi-material components.

3.Durability:

1.Ideal for components that must withstand mechanical stress, high temperatures, or corrosive environments.

4.Cost-Effective:

1.Low material waste and scalability for large production runs.

Injection molding is a cornerstone of modern manufacturing, enabling the production of essential components for appliances, automotive systems, medical devices, and more. Its adaptability, combined with innovations like overmolding, makes it indispensable for industries requiring precision, durability, and efficiency.

Read More Read Less

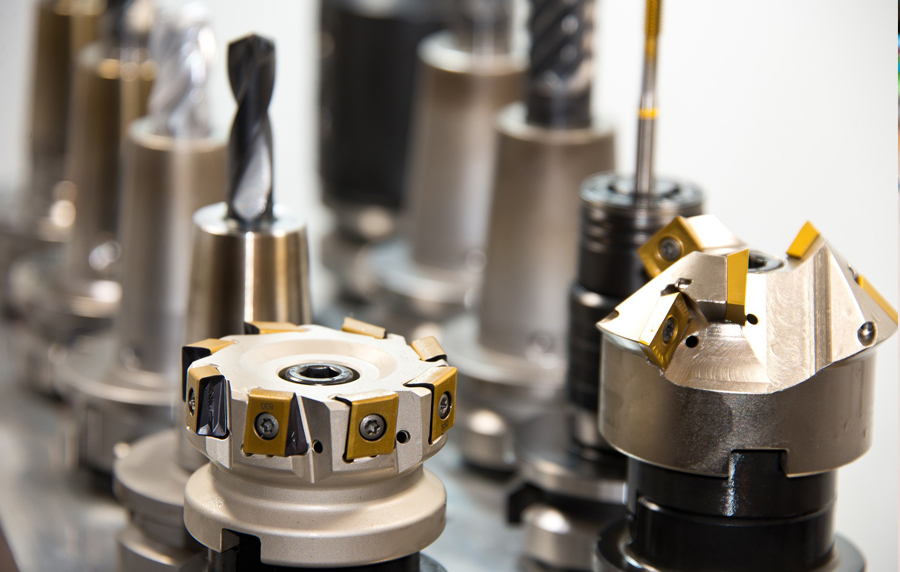

We also specialize in manufacturing custom tools tailored to customer-supplied drawings. For example, we can design and produce high-quality plastic injection molds to meet specific project requirements. Our process includes comprehensive services such as precision manufacturing, tool testing, and validation. For customers requiring prototypes or limited production runs, we offer small-scale production testing to ensure the tool meets all performance criteria. Once completed, the tools are delivered ready for seamless

Read More Read Less

Reverse Engineering Bakery Equipment Parts

Key Steps:

Inspection and Measurement:

1.Physically measure the existing part (if available) using tools like calipers, micrometers, or 3D scanners.

2.Example: A worn-out roller from a dough sheeter can be scanned to capture its dimensions and surface contours.

CAD Modeling:

1.Translate the measurements into detailed CAD drawings that specify the part’s geometry, materials, and tolerances.

2.Example: A broken gear from an industrial bread slicer can be converted into a CAD model to ensure precision.

Material Selection and Manufacturing:

1.Choose suitable materials, such as exotic metals or specialized plastics, to meet the bakery equipment's operational demands.

2.Example: Replace a high-temperature oven conveyor component with a new one made from heat-resistant stainless steel.

Production and Testing:

1.Manufacture the part using processes like CNC machining, injection molding, or 3D printing.

2.Test the new part to ensure it integrates seamlessly into the machinery.

Examples of Bakery Equipment Reverse Engineering:

Obsolete Bearings for Mixers:

1.A bakery mixer’s bearing is no longer produced. Reverse engineering creates a CAD model of the worn bearing, and a replacement is manufactured using modern materials with better durability.

Custom Conveyor Chains:

1.Conveyor systems for proofing chambers often use unique chains that wear out over time. Reverse engineering replaces these with corrosion-resistant alternatives, enhancing the system's longevity.

Exotic Metal Blades for Dough Cutters:

1.Blades that were originally made of exotic steel alloys for cutting sticky dough are replicated using reverse engineering. The CAD process ensures precise replication and compatibility.

Plastic Components for Packaging Machines:

1.Outdated plastic guides or cogs in packaging machines can be reverse-engineered and manufactured from food-grade polymers, ensuring safety and compliance with regulations.

Heating Elements for Ovens:

1.When heating elements fail in older ovens, reverse engineering allows for the creation of compatible replacements using advanced heat-resistant alloys.

Why Reverse Engineering is Critical in Bakery Operations

Minimizes Downtime:Replacing hard-to-find parts keeps production running smoothly.
Cost-Effective:Avoids the need to replace entire machines due to minor part failures.
Customization Opportunities:Parts can be improved upon, providing better performance than the originals.
Sustainability:Extends the life of equipment, reducing waste and promoting eco-friendly practices

Read More Read Less

CNC Milling

Process: CNC (Computer Numerical Control) milling uses rotary cutters to remove material from a workpiece, allowing for precise cutting and shaping of complex parts.

Materials:PEEK, PTFE, Brass, Stainless Steel, Steel
Examples:
PEEK:Custom seals, bearings, and wear parts.
PTFE:Gaskets, washers, and insulators.
Brass:Electrical connectors, valves, and precision components.
Stainless Steel:Surgical instruments, machine parts, and automotive components.
Steel:Engine blocks, structural components, and tools.
Industries:Aerospace, Automotive, Medical, Electronics, Manufacturing

Turning (Lathe Machining)

Process: Turning uses a rotating workpiece and stationary cutting tool to remove material, typically to create cylindrical shapes, threads, or smooth surfaces.

Materials:PEEK, PTFE, Brass, Stainless Steel, Steel
Examples:
PEEK:Rods and shafts for medical or food processing applications.
PTFE:Bearings and bushings for chemical industries.
Brass:Precision components for electronics and plumbing.
Stainless Steel:Shafts, bushings, and components in marine environments.
Steel:Axles, rods, and shafts for automotive or heavy machinery.
Industries:Medical, Automotive, Electronics, Manufacturing, Aerospace

Grinding

Process: Grinding involves using an abrasive wheel to smooth or finish surfaces, typically used for high-precision applications and creating tight tolerances.

Materials:PEEK, PTFE, Brass, Stainless Steel, Steel
Examples:
PEEK:Fine-tuning the dimensions of high-performance medical parts.
PTFE:Achieving smooth finishes for non-stick coatings or seals.
Brass:Polished electrical connectors or mechanical parts.
Stainless Steel:Finishing stainless steel components for food-grade environments or medical instruments.
Steel:Surface finishing of tool steels or bearing surfaces.
Industries:Medical, Aerospace, Electronics, Automotive, Manufacturing

Electrical Discharge Machining (EDM)

Process: EDM uses electrical discharges (sparks) to erode material from the workpiece, ideal for hard metals or complex, delicate parts.

Materials:PEEK, PTFE, Brass, Stainless Steel, Steel
Examples:
PEEK:Creating intricate, complex geometries for aerospace or medical devices.
PTFE:Precision-cut parts for high-tolerance industrial seals.
Brass:Mold components or small electrical parts.
Stainless Steel:Complex, intricate shapes for medical implants or tools.
Steel:Producing precision molds, tooling, and parts for automotive or heavy machinery.
Industries:Aerospace, Medical, Tooling, Manufacturing, Automotive

Laser Cutting

Process: Laser cutting uses a focused laser beam to melt or vaporize material to create precise cuts in various shapes.

Materials:PEEK, PTFE, Brass, Stainless Steel, Steel
Examples:
PEEK:Cutting seals, gaskets, or custom components for aerospace or electronics.
PTFE:Cutting gaskets or seals for the chemical or food industries.
Brass:Cutting intricate patterns for electrical connectors and plumbing parts.
Stainless Steel:Cutting stainless steel sheets or components for medical devices or food processing.
Steel:Cutting structural components for construction and automotive parts.
Industries:Electronics, Automotive, Aerospace, Medical, Manufacturing

Water Jet Cutting

Process: Water jet cutting uses high-pressure water mixed with abrasive materials to cut through thick materials without generating heat.

Materials:PEEK, PTFE, Brass, Stainless Steel, Steel
Examples:
PEEK:Precision cutting for medical or aerospace components.
PTFE:Cutting seals or gaskets for the chemical industry.
Brass:Cutting parts for electrical systems and hardware.
Stainless Steel:Cutting food-grade stainless steel components.
Steel:Cutting steel plates for structural or automotive applications.
Industries:Aerospace, Medical, Electronics, Automotive, Manufacturing

Drilling

Process: Drilling involves creating round holes in a workpiece using a rotating drill bit.

Materials:PEEK, PTFE, Brass, Stainless Steel, Steel
Examples:
PEEK:Drilled holes for medical implants or aerospace parts.
PTFE:Holes for custom gaskets or seals in chemical industries.
Brass:Drilling precision holes for electrical or mechanical components.
Stainless Steel:Drilling holes for medical instruments, valves, or food processing parts.
Steel:Creating holes in automotive components or heavy-duty machinery parts.
Industries:Medical, Aerospace, Automotive, Electronics, Manufacturing

Milling

Process: Milling involves using rotary cutters to remove material from a workpiece, creating flat surfaces or complex shapes.

Materials:PEEK, PTFE, Brass, Stainless Steel, Steel
Examples:
PEEK:Milling precision parts for aerospace or medical applications.
PTFE:Milling components for gaskets or seals used in chemical processing.
Brass:Creating complex electrical connectors or fittings.
Stainless Steel:Milling machine parts, surgical tools, or food processing equipment.
Steel:Milling structural components, automotive parts, or machinery.
Industries:Aerospace, Automotive, Medical, Electronics, Manufacturing

Polishing

Process: Polishing is a finishing process that smooths the surface of a part to achieve a shiny, smooth finish, typically using abrasive compounds.

Materials:PEEK, PTFE, Brass, Stainless Steel, Steel
Examples:
PEEK:Polishing medical components for smooth finishes in implants or surgical tools.
PTFE:Polishing for non-stick surfaces in food-grade parts or seals.
Brass:Polishing for decorative items or electrical connectors.
Stainless Steel:Polishing for medical devices, food equipment, or automotive parts.
Steel:Polishing parts for high-end machinery or tools.
Industries:Medical, Aerospace, Electronics, Automotive, Manufacturing

Read More Read Less

Examples of Sheet Metal Fabrication in Various Industries

Laser-Cut Trays

Bakery Equipment:
Custom baking trays with perforations for heat distribution.
Electronics:
Precision trays for mounting printed circuit boards (PCBs) or organizing electronic components.
Example: Laser-cut aluminum trays for server racks in data centers.

Read More Read Less

Here are some examples of casting processes used to produce smaller, lighter, and non-critical components across various industries:

Sand Casting

➡️ Components & Industries:

Automotive:Small engine parts, decorative trim, and brackets.
Consumer Goods:Small household items like lamp bases, door handles, and decorative castings.

Read More Read Less

Injection Molding Applications: Plastic Components Across Industries

Examples of Injection Molding Applications

Household Appliances

Dishwashers:
Plastic components such as racks, spray arms, and door seals are manufactured using injection molding to ensure durability, water resistance, and precise fit.
Example:Injection-molded cutlery baskets designed for easy organization and optimal water flow during cleaning.

Food Processing and Commercial Equipment

Solenoid Valve Components:
Plastic housings and seals for solenoid valves in dishwashers and washing machines. These parts need to withstand high pressure and temperature variations.
Example:Injection-molded solenoid valve casings made from reinforced nylon to handle the demands of water flow control in appliances.
Proofer Baskets (Overmolding):
Overmolding involves combining two materials (e.g., a rigid plastic core with a softer exterior) to enhance grip, durability, or functionality.
Example:Overmolded proofer baskets with rigid polypropylene cores and flexible silicone grips for safe handling and stackability.

Automotive Industry

Engine Parts:

Heat-resistant plastic housings for solenoid valves, fuel system components, and cooling system connectors.
Example:Injection-molded valve covers with precision-engineered ports for oil flow.

Medical and Healthcare

Diagnostic Equipment:
Housings for devices monitors or imaging equipment are injection-molded for precision and sterility.
Example:Injection-molded casing for a handheld ultrasound device with ergonomic design and antimicrobial properties.

Industrial Applications

Machinery Parts:

Covers and housings for machinery components are molded for durability and precise fits.
Example:Injection-molded safety guards for factory conveyor belts.

Material Considerations

High-Durability Plastics:
Nylon, Polycarbonate, and ABS:Used for solenoid valve housings and washing machine components for their strength and heat resistance.
Food-Grade Plastics:
Polypropylene and Polyethylene:Commonly used in proofer baskets and dishwasher components due to their non-toxicity and ease of cleaning.
Overmolding Materials:
TPE (Thermoplastic Elastomers) and Silicone:Used for soft-touch grips in proofer baskets and ergonomic handles.

Advantages of Injection Molding

1.High Efficiency:

1.Suitable for mass production with consistent quality and tight tolerances.

2.Versatility:

1.Capable of creating complex shapes, overmolded parts, and multi-material components.

3.Durability:

1.Ideal for components that must withstand mechanical stress, high temperatures, or corrosive environments.

4.Cost-Effective:

1.Low material waste and scalability for large production runs.

Read More Read Less

Here are some Examples…

Useful Links

News

Contact

Cookie Policy (UK)

Privacy Policy

Terms of Service

About Us

What do we do?

What are we about?

How do we do this?

Here are some Examples…

Some of the Industries we work in…

Contact Info

London, United Kingdom

sales@kimelind.com

Newsletter
